. Network Cable - Cat.6a (S/FTP) Adam Hall® ECON RJ-45 - 3 m .
Network Cable | Cat.6a (S/FTP) Adam Hall® ECON RJ-45 | 3 m
search
  • Network Cable | Cat.6a (S/FTP) Adam Hall® ECON RJ-45 | 3 m

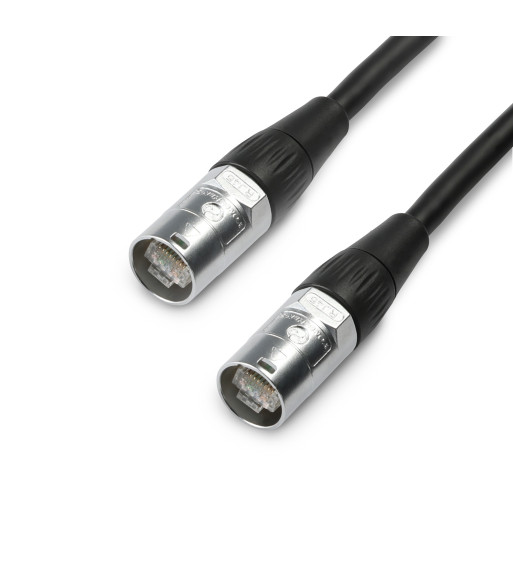

Network Cable - Cat.6a (S/FTP) Adam Hall® ECON RJ-45 - 3 m

229,00 kr.
Inkl. moms
4 STAR ECON CAT6A 3m

Nowadays, a fast network cable is a must for all events - whether on stage, in fixed installations or at home. For this purpose, Adamh Hall now offers the Cat.6a cable which, with its transmission frequency of 500 MHz, which is achieved by a special insulation of the opposing pairs of wires, has become the most common network cable. The high-quality 4 STAR CAT6 cable from our 4 Star series comes as a four twisted pair version and is our standard cable for indoor and outdoor network applications. It can therefore be used in all event-tech relevant areas. Cat.6a is downward compatible and can therefore also be used for Cat.6 and Cat.5e transmissions. Our professional Cat.6a network cables meet all the requirements of the event tech industry and are characterised by robustness for outdoor use or durability for the studio.

Antal
På fjernlager

Ref: K4CAT60300

  • Professional network cable from our 4 STAR SERIES
  • With high-quality RJ-45 connectors with gold-plating
  • Removable protective housing (etherCON® compatible)
  • Super robust cable thanks to special aluminium foil and PVC jacket
  • Four individually shielded twisted pairs of wires
  • PoE (Power over Ethernet) capable up to 70m

General

Cable length3 m
Cable jacketPVC (Polyvinyl chloride)
Cable diameter8 mm
Cable colourBlack

Plugs

Connector type plug 1RJ-45 with housing
Model name plug 1Adam Hall K4CCAT6YS
Connector type plug 2RJ-45 with housing
Model name plug 2Adam Hall K4CCAT6YS

Line

CAT standardCat.6a
Conductor materialOxygen-free copper (OFC)
Conductor diameter4 x 2 x 0,22 mm²
AWG24
ShieldBraided copper shielding
Shielding structureAL/PT foil with drain wire, wire pairs individually shielded 7 x 0.20 mm

Environmental

Temperature range-20 - 60 °C

Dimensions & weight

Weight272 g
K4CAT60300
