LD Systems Battery Powered Bluetooth Speaker with Mixer, Bodypack and Headset

6.329,00 kr.
Inkl. moms

ROADBUDDY 10 HS

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 - 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

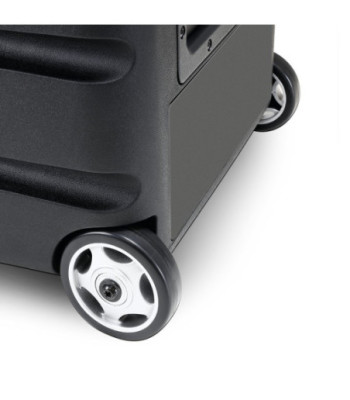

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.

Antal
Sidste elementer på lager

Ref: LDRBUD10HS

  • Battery powered speaker solution
  • Integrated radio receiver 863 - 865 MHz for license-free operation
  • Bluetooth player with USB port and SD card slot
  • Class D power amplifier with 480 watts of peak power
  • 2 combo sockets for microphone or line inputs
  • 3.5 mm Aux input
  • Master section with 2-band EQ
  • Built-in wheels, pull-out handle and fixing for 35 mm tripod mount
  • Wireless microphone and IR-remote control included

Product type Battery-powered PA speaker
Low/mid Woofer dimensions 10 "
Woofer dimensions (mm) 254 mm
Woofer magnet Ferrite
Woofer brand Custom-made
HF driver dimensions 1 "
HF driver dimention (mm) 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
Amplifier Class D
RMS 120 W
Peak power 480 W
Frequency response 55 - 18000
SPL (1W/1m) 96 dB
Max. SPL 115 dB
Protection circuits over-current
Protection circuits overload protection
Protection circuits Short circuit
Controls AUX / MP3 switch
Controls CD / Tape IN Level
Controls Echo
Controls high
Controls low
Controls Master Volume
Controls Mic 1 Level
Controls Mic 2 Level
Indicators Charge/battery status
Indicators Power

Media player

Supported media Bluetooth
Supported media SD Card
Supported media USB stick
Supported formats MP3 file
Supported formats WAV-CD
Supported formats WMA file
Media player controls equalizer
Media player controls Mode (Menu / Bluetooth /SD / USB)
Media player controls Next Track
Media player controls Play / Pause
Media player controls Previous Track
Media player controls Repeat
Media player controls Stop
Media player display elements Lighted multifunctional LC display
Line inputs 1
Line input connectors 2 x RCA
Line input connectors 2 x XLR
Line input connectors 3.5 mm jack
Line input connectors 6.3 mm jack
Mic inputs 2
Mic inputs 2 x XLR
Mic inputs 6.3 mm jack

Wireless Unit

Transmission frequency range 863 - 865 MHz
Modulation Type FM
Channels 16
Frequency Response Wireless Unit 50 - 17000 Hz
Controllers Wireless Unit ASC
Controllers Wireless Unit Mute Level (Squelch)
Controllers Wireless Unit Power / Volume
Controllers Wireless Unit Value Down
Controllers Wireless Unit Value Up
Indicators Wireless Unit AF (LED)
Indicators Wireless Unit LED Display
Indicators Wireless Unit RF (LED)
Connections Wireless Unit nTNC for receiver antenna
RF Transmitter Power Output 10 mW
Bodypack weight 0.08 kg
Bodypack material ABS plastic
Power supply Switching power supply
Operating voltage 100 V - 120 V / 60 Hz
Operating voltage 220 V - 240 V AC / 50 Hz
Rechargeable batteries 12 V / 5 Ah
Cabinet material Polypropylene
Cabinet construction Bass Reflex
Width 415 mm
Height 525 mm
Depth 328 mm
Weight 16,5 kg
Other features extendable handle
Other features IR Remote for Media Player
Other features Stand mount 36 mm
Other features Transport casters
Other features transport handle
LD Systems
LDRBUD10HS
1 Enhed

Specifikke referencer
