Intrument Cable - Adam Hall® Angled Jack TS x Jack TS - 3 m

79,00 kr.
Inkl. moms
3 STAR IPR 0300

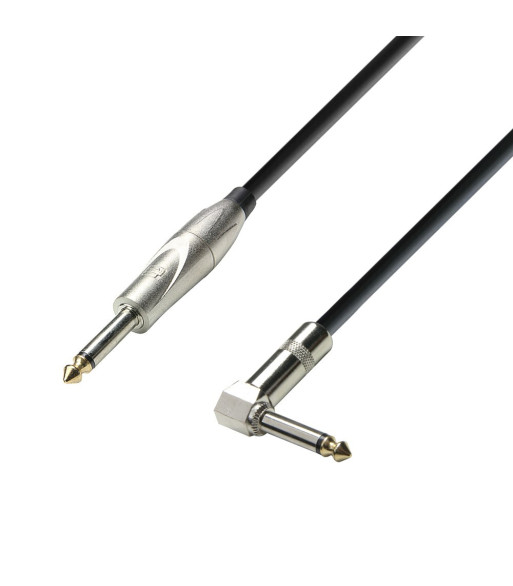

Equivalent to the cable with two straight TRS plugs, but with an angled TRS plug on one end. Ideal for use with guitars, keyboards or other musical instruments.

Antal
På fjernlager

Ref: K3IPR0300

  • The instrument cable from our 3 STAR SERIES
  • Developed and engineered in Germany
  • With high-quality angled TS jack connectors from Adam Hall Cables®
  • The spring bend protection on the plug prevents cable breakage and ensures stability
  • With gold-plated contacts for a long-lasting mating cycle

General

Cable length3 m
Cable jacketPVC (Polyvinyl chloride)
Cable diameter6 mm
Cable colourBlack

Plugs

Connector type plug 16.3 mm Jack TS angled
Model name plug 1Adam Hall 4 STAR C JM2A BLK
Contact material plug 1Gold plated
Connector type plug 26.3 mm Jack TS
Model name plug 2Adam Hall 4 STAR C JM2 BLK
Contact material plug 2Gold plated

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter1 x 0,22 mm²
AWG24
Capacity/m122 pF
Conductor impedance/km85 Ohm

Environmental

Temperature range-20 - 70 °C

Dimensions & weight

Weight178 g
K3IPR0300
