. RIGGATEC Halfcoupler Side Entry with Half Cone Black up to 300 kg (48 - 51 mm) .

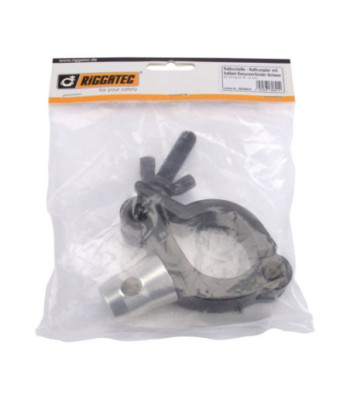

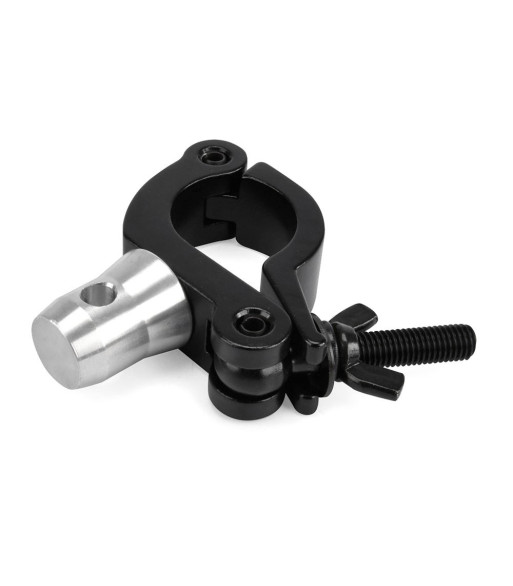

RIGGATEC Halfcoupler Side Entry with Half Cone Black up to 300 kg (48 - 51 mm)
search
  • RIGGATEC Halfcoupler Side Entry with Half Cone Black up to 300 kg (48 - 51 mm)
  • RIGGATEC Halfcoupler Side Entry with Half Cone Black up to 300 kg (48 - 51 mm)
  • RIGGATEC Halfcoupler Side Entry with Half Cone Black up to 300 kg (48 - 51 mm)

RIGGATEC Halfcoupler Side Entry with Half Cone Black up to 300 kg (48 - 51 mm)

239,00 kr.
Inkl. moms
400200066
  • Incl. device screw M10 black, retaining ring and half cone connector (excluding bolt and spigot)
  • Lock screw M12 zinc coated with grommet and wing nut
Antal
På fjernlager

Ref: RIG400200066

Product typeTruss Accessories
TypeHalf Coupler
Suitable for tube diameter48 - 51 mm
Tensile load300 kg
MaterialAluminium
Clamp width30 mm
Length113 mm
Width30 mm
Height80 mm
Weight0,4 kg
RIGGATEC
RIG400200066

Specifikke referencer

16 andre varer i den samme kategori:

RIGGATEC Halfcoupler Small
search

RIGGATEC Halfcoupler Small,...

400200085
  • Incl. device screw M10 black coated and M10 ring eye C15E coated
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Pris 129,00 kr.

På fjernlager

RIGGATEC Hanging Point for 290 mm Trusses up to 170 kg
search

RIGGATEC Hanging Point for...

RIG 400 201 100
  • For safe and compliant suspension of 3-point trusses
  • For traverses with a pipe diameter of ca. 48 - 51 mm
  • Suitable for operation over people
  • The permissible vertical load capacity for use above persons is 170 kg.
  • Statically tested
  • For applications in the field of exhibition stand construction, shopfitting, event technology

Statically tested according to:

  • DIN 4113 Aluminium in building construction (02/1958, 05/1980 Part 1, A109/2002, 09/2002 Part 2)
  • BGV C1: BG regulation - event and production facilities for scenic performances (04/1998)
Pris 1.049,00 kr.

På fjernlager

RIGGATEC Halfcoupler Heavy Black max. Load 750 kg (60 mm) - 4 stk.
search

RIGGATEC Halfcoupler Heavy...

400200069
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M12 black, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
Pris 889,00 kr.

På fjernlager

RIGGATEC Swivel Coupler Heavy Black max. Load 750 kg MKII (48 - 51 mm)
search

RIGGATEC Swivel Coupler...

400200083
  • For 48 - 51 mm pipe diameter
  • 360° turnable
  • TUV approved (certificate can be sent on request)
  • Resilient up to 750 kg (tensile load)
  • Clamp width: 51 mm
  • Maximum shearing load: 100 kg
  • Material: Aluminum 6061 T6, black
  • Linked with bolt
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
  • Outer dimensions: 113 x 51 x 162 mm (length x width x height)
  • Weight: 1,33 kg
Pris 309,00 kr.

På fjernlager

Universal Hook Clamp with Toggle black
search

Universal Hook Clamp with...

SUPER CLAMP
  • Perfect for lighting and multimedia applications
  • Adjustable clamping lever - can be operated in any position
  • Full metal (stainless steel and die-cast aluminium alloy)
  • For mounting on round and square tubes as well as on flat objects
  • Clamping range: 13 _ 55 mm
  • 5/8" (16 mm) hexagonal or circular pin insert
  • 1 x M6 and 2 x M5 thread
  • TÜV certified
  • Max. load capacity: 20 kg
  • Not oxidising
  • Various mounting bolts available as an option
Pris 249,00 kr.

På lager

RIGGATEC Multi Clamp Black max. Load 250 kg (48 - 51 mm)
search

RIGGATEC Multi Clamp Black...

400200070
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M10 zinc coated, retaining ring, grommet and wing nut
  • Lock screw M12 zinc coated with grommet and large wing nut
Pris 169,00 kr.

På fjernlager

RIGGATEC Halfcoupler Heavy max. 750 kg (48 - 51 mm) Stainless Steel
search

RIGGATEC Halfcoupler Heavy...

400200038
  • All screws and fasteners are made of stainless steel
  • Incl. device screw M12 stainless steel, retaining ring, grommet and wing nut
  • Lock screw M8 stainless steel with grommet and wing nut
Pris 269,00 kr.

På fjernlager

RIGGATEC Halfcoupler Heavy Black max. Load 500 kg (48 - 51 mm)
search

RIGGATEC Halfcoupler Heavy...

400200065
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M10 zinc coated, retaining ring, grommet and wing nut
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Pris 159,00 kr.

På fjernlager

RIGGATEC Swivel Coupler Slim Silver max. 50 kg (32 - 35 mm)
search

RIGGATEC Swivel Coupler...

400200975

360° turnable

TUV approved (certificate can be sent on request)

Lock screw M8 zinc coated with grommet and wing nutLinked with screw M8

Pris 119,00 kr.

På fjernlager

RIGGATEC Halfcoupler Slim
search

RIGGATEC Halfcoupler Slim,...

400200034
  • For 48 - 51 mm pipe diameter
  • Resilient up to 750 kg (tensile load)
  • TUV approved (certificate can be sent on request)
  • Clamp width: 30 mm
  • Maximum shearing load: 100 kg
  • Material: Aluminum 6061 T6
  • incl. device screw M12 silver, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
  • Outer dimensions: 113 x 30 x 81 mm (length x width x height without device screw)
  • Weight: 0.48 kg
Pris 119,00 kr.

På fjernlager

RIGGATEC Halfcoupler Slim Black max. Load 200 kg (48 - 51 mm)
search

RIGGATEC Halfcoupler Slim...

400200060
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M10 zinc coated, retaining ring, grommet and self-locking nut
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Pris 119,00 kr.

På fjernlager
