IMG STAGELINE PA-højttaler 400Wmax - DRIVE-08A

3.749,00 kr.
Inkl. moms
With the DRIVE series
you will get robust and easy-to-use PA speakers which are suitable for versatile applications and feature the latest DSP-controlled amplifier technology. There are 3 selectable presets available to provide a perfect sound adjustment for any kind of application. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional active DSP speaker system with 2-channel amplifier, 200 W

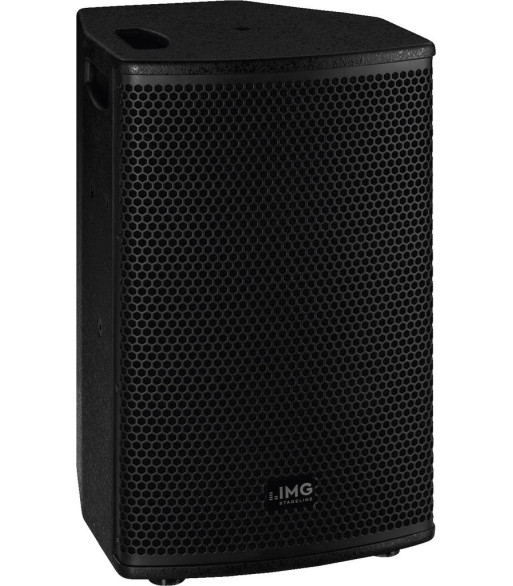

  • Compact 8/2 full range system with cabinet made of birch plywood
  • DSP-controlled 2-channel amplifier (bass: class D, tweeter: class A/B)

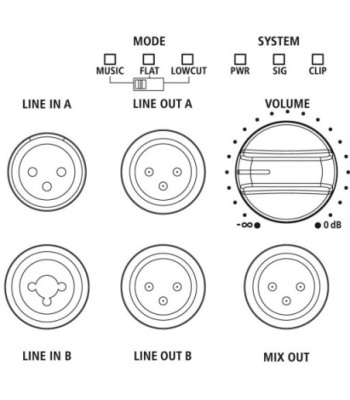

  • 3 selectable presets

  • FLAT (linear adjustment)
  • MUSIC (slightly raised bass and treble)
  • LOW CUT (with high-pass filter for application with an additional subwoofer)

  • 20 cm (8") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern
  • M8 threaded inserts for suspended installation, stand sleeve
  • Volume control

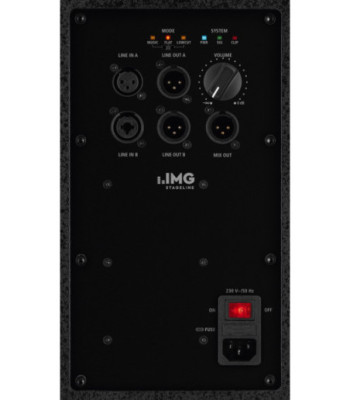

  • 2 x balanced line in
  • 2 x parallel line out
  • 1 x balanced mix out
  • Power and clip indicator

Antal
Sidste elementer på lager

Ref: DRIVE-08A

Active/passiveactive
Transmission technologycable
Total output power400 W
Power rating (RMS)DSP-controlled 200 W (140 + 60)

bass: 140 W

treble: 60 W

Total power rating-
Power rating (RMS)-
Impedance-
Frequency range60-20,000 Hz
THD-
S/N ratio-
Input signal790 mV/40 k_ (line, bal.)
System8/2 full range
Full range speaker-
Bass speaker20 cm (8") bass speaker
Midrange speaker-
Tweeter25 mm (1") horn tweeter
Number of speakers2
Speaker size20 cm (8")
SPL98 dB/W/m
Max. rated SPL122 dB
Beam angleH: 90°/V: 60°, horn can be turned
Radiation angle, horizontal90°
Radiation angle, vertical60°
Features-
Housing materialbirch plywood
Colourblack
Mounting deviceM8 threaded inserts, stand sleeve
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply∿ 230 V/50 Hz/250 VA
Dimensions270 x 460 x 290 mm
Width270 mm
Height460 mm
Depth290 mm
Weight9.4 kg
Inputs1 x comb. XLR/6.3 mm: line

1 x XLR: line

Outputs2 x XLR par. out

1 x XLR mix out

Replacement voice coil-
Other featuresDSP-controlled limiter

3 selectable presets

Accessories-
Packing dimensions (W x H x L)0.38 x 0.54 x 0.36 m
Gross weight12.24 kg
Net weight9.4 kg
IMG STAGELINE
DRIVE-08A
1 Enhed
