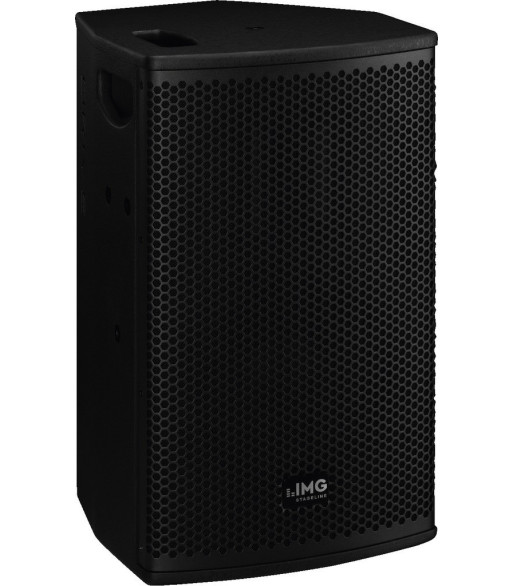

Ref: DRIVE-08P
Active/passive | passive |
Transmission technology | cable |
Total output power | - |
Power rating (RMS) | - |
Total power rating | 300 W |
Power rating (RMS) | 150 W |
Impedance | 8 _ |
Frequency range | 60-20,000 Hz |
THD | - |
S/N ratio | - |
Input signal | - |
System | 8/2 full range |
Full range speaker | - |
Bass speaker | 20 cm (8") bass speaker |
Midrange speaker | - |
Tweeter | 25 mm (1") horn tweeter |
Number of speakers | 2 |
Speaker size | 20 cm (8") |
SPL | 98 dB/W/m |
Max. rated SPL | 121 dB |
Beam angle | H: 90°/V: 60°, horn can be turned |
Radiation angle, horizontal | 90° |
Radiation angle, vertical | 60° |
Features | - |
Housing material | birch plywood |
Colour | black |
Mounting device | M8 threaded inserts, stand sleeve |
Protected against ball rebound | - |
Protection class | - |
Admiss. ambient temp. | 0-40 °C |
Power supply | - |
Dimensions | 270 x 460 x 290 mm |
Width | 270 mm |
Height | 460 mm |
Depth | 290 mm |
Weight | 8.43 kg |
Inputs | 1 x SPEAKER jack |
Outputs | 1 x SPEAKER jack par. out |
Replacement voice coil | - |
Other features | - |
Accessories | - |
Packing dimensions (W x H x L) | 0.4 x 0.58 x 0.38 m |
Gross weight | 11.5 kg |
Net weight | 8.43 kg |
