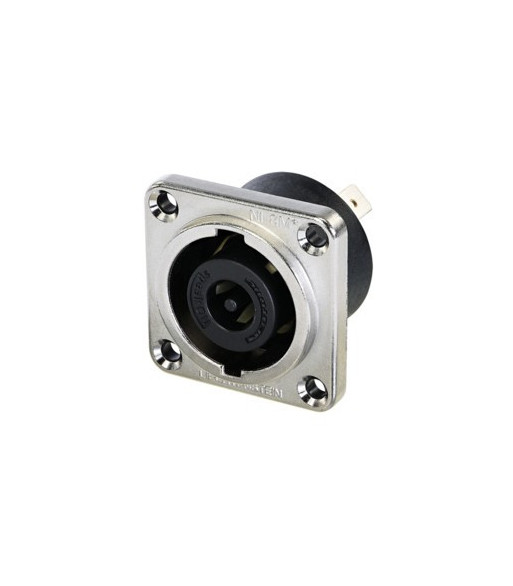

Neutrik Neutrik speakON® chassis connector 8-pole male nickel-plated

199,00 kr.

Inkl. moms

NLT8MPXX

8-pole chassis connector, G-shape metal housing, through holes, 1/4" tabs.

Due to the component certification according to IEC 61984, this connector is suitable for use in devices which have to comply with the device standard IEC 62368-1.

The speakON STXX loudspeaker connectors have been developed for the most demanding applications, especially in the touring sector. The sturdy die-cast metal housing makes the connectors extremely robust.

Antal

På fjernlager

Ref: NLT8MPXX

Beskrivelse
Produktoplysninger

IEC 61984 certified, thus suitable as a component for devices certified according to IEC 62368-1
Extremely robust metal housing and insert made of glass-fibre reinforced V-0 material for demanding applications, especially in outdoor and touring applications
Airtight design - optimised for loudspeaker applications
Rated current 30 A rms
Highly precise "Quick Lock" locking system
Compatible with the complete speakON 8-pole product series

Product type	Plugs and Connectors
Type	Loudspeaker Connectors
Gender	male
Poles	8
Contacts	copper
Housing	polyamide
Weight	0,027 kg

Mærker NEUTRIK

Reference NLT8MPXX

Specifikke referencer
