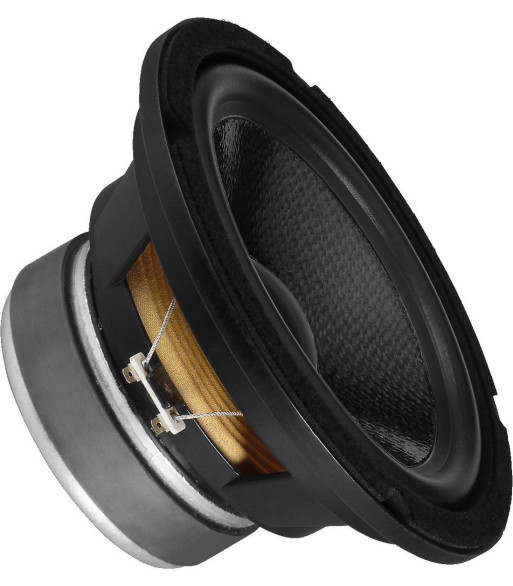

MONACOR 8´´ højttaler - SPH-200KE/SW
search
  • MONACOR 8´´ højttaler - SPH-200KE/SW

MONACOR 8´´ højttaler - SPH-200KE/SW

929,00 kr.
Inkl. moms
Top hi-fi bass-midrange speaker, 120 W, 8 _
  • Black Kevlar cone
  • Diecast aluminium basket for 3-way and also 2-way combinations of highest quality
  • For full range applications
  • Excellent bass reproduction in the entire hi-fi range

Antal
Sidste elementer på lager

Ref: SPH-200KE/SW

Impedance (Z)8 _
Transmission technology-
Frequency rangef3-4,500 Hz
Resonant frequency (fs)28 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)80 W
Peak music power output (MAX)120 W
SPL90 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.89 mm/N
Moving mass (Mms)37 g
Mech. Q factor (Qms)4.65
Electr. Q factor (Qes)0.41
Total Q factor (Qts)0.38
Equivalent volume (Vas)54 l
DC resistance (Re)6.2 _
Force factor (BxL)9.90 Tm
Voice coil induct. (Le)0.75 mH
Voice coil diameterØ 50 mm
Voice coil formerKapton
Linear excursion (XMAX)± 4.75 mm
Eff. cone area (Sd)207 cm2
Magnet weight840 g + 50 g
Magnet diameterØ 120 mm
Mounting cutoutØ 182 mm
Mounting depth89 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 212 mm x 100 mm
Outside diameterØ 212 mm
WidthØ 212 mm
Height-
Depth100 mm
Colourblack
Protective class-
Admiss. ambient temp.0-40 °C
Weight2.70 kg
Packing unit1
Type of speaker8"
Packing dimensions (W x H x L)0.22 x 0.124 x 0.23 m
Gross weight2.94 kg
Net weight2.70 kg
SPH-200KE/SW
1 Enhed
