. Neutrik XLR chassis connector 5-pole female Neutrik® .
Neutrik XLR chassis connector 5-pole female Neutrik®
search
  • Neutrik XLR chassis connector 5-pole female Neutrik®

Neutrik XLR chassis connector 5-pole female Neutrik®

49,00 kr.
Inkl. moms
NC5FAV

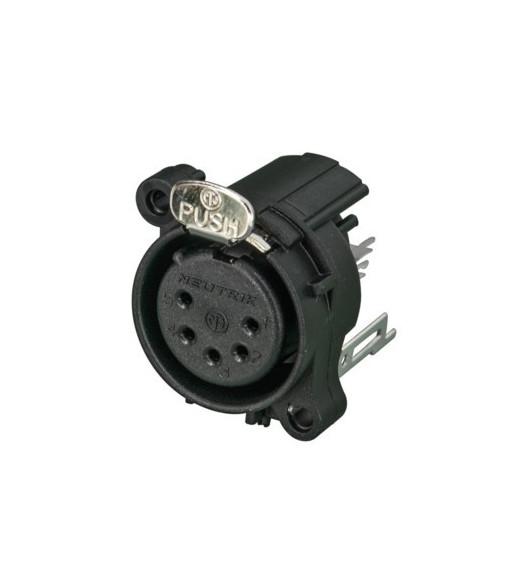

5 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed tulip type contacts with gold plating of contact area and tin plated pcb termination area.

Antal
På fjernlager

Ref: NC5FAV

  • Smallest XLR receptacles, highest packing density
  • Plastic housing, steel latch lock
  • Tulip type female contact
  • Polished contact areas and hard gold plating
  • Housing Flammability according to UL94HB

Product typePlugs and Connectors
TypeXLR Socket
Poles5
Genderfemale
ColorBlack
ContactsBronze
Connection typeVertical PCB mounting
Connection socket7
Resistance6 m Ohm(s)
insulating resistance>10
Rated current per contact3 A
Housingpolyamide
Chassis shapeA
LatchLatch lock
Fire protection classUL 94 HB
Protection class IPIP40
Temperature range-30 - 80 °C
Weight0,007 kg
NEUTRIK
NC5FAV
