. DMX Cable - Neutrik® XLR 5-pole without single packaging - 5 m .

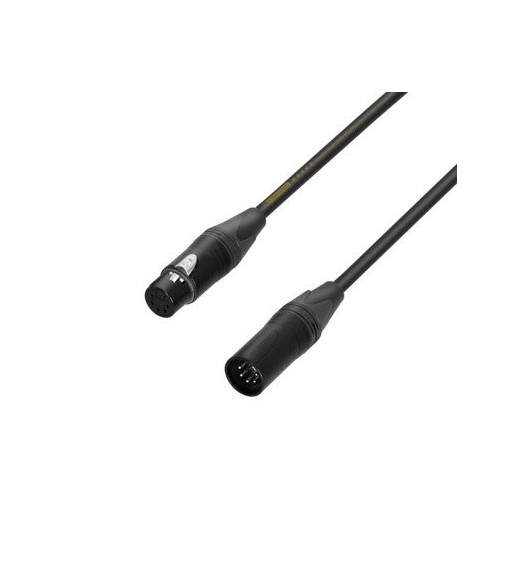

DMX Cable | Neutrik® XLR 5-pole without single packaging | 5 m
search
  • DMX Cable | Neutrik® XLR 5-pole without single packaging | 5 m

DMX Cable - Neutrik® XLR 5-pole without single packaging - 5 m

5.279,00 kr.
Inkl. moms

5 STAR DGH 0500 BULK VERSION

Analogue to the three-pole version, this data cable is equipped with five-pole connectors from Neutrik© and is thus perfectly suited for the transmission of DMX signals in lighting control.

Antal
På fjernlager

Ref: K5DGH0500X

  • Version without sales packaging
  • The DMX, AES/EBU cables from our 5 STAR SERIES are manufactured in the EU
  • With black XLR connectors from Neutrik® manufactured in the EU
  • Optimum quality thanks to the silver-plated contacts of the connectors
  • The cable with 0.34 mm² (AWG22) inner conductor is very flexible yet robust thanks to its soft PVC sheathing
  • For professional use in the studio or on stage, with two transparent loose shrink sleeves for your own labeling

General

Cable length 5 m
Cable jacket PVC (Polyvinyl chloride)
Cable diameter 6.4 mm
Cable colour Black

Plugs

Connector type plug 1 XLR 5-pole female
Model name plug 1 Neutrik NC5FXX-BAG
Contact material plug 1 Silver plated
Connector type plug 2 XLR 5-pole male
Model name plug 2 Neutrik NC5MXX-BAG
Contact material plug 2 Silver plated

Line

Conductor material Oxygen-free copper (OFC)
Conductor diameter 2 x 0,34 mm²
Capacity/m 63 pF
Conductor impedance/km 53 Ohm/km
Characteristic impedance 110 _
Shield Spiral copper shielding

Dimensions & weight

Weight 370 g
Adam Hall Cables
K5DGH0500X

Produktinformation

Farve
Sort
Kabel: længde
5.00 meter
Kabel: Stik - start
XLR - 5pol - hun
Kabel: Stik - slut
XLR - 5pol - han

Specifikke referencer
