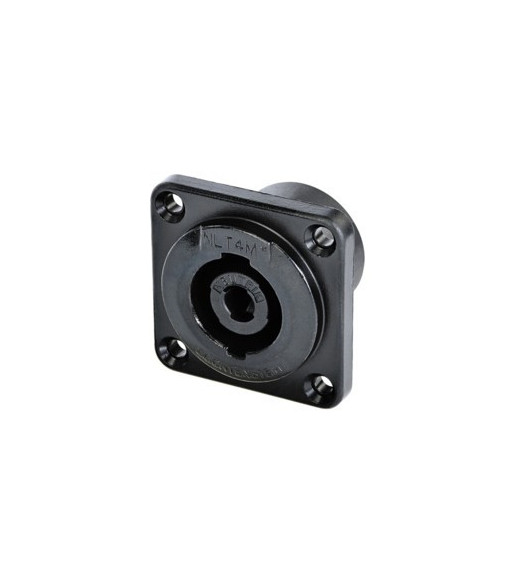

. Neutrik speakON® chassis connector 4-pole male Neutrik® .
Neutrik speakON® chassis connector 4-pole male Neutrik®
search
  • Neutrik speakON® chassis connector 4-pole male Neutrik®

Neutrik speakON® chassis connector 4-pole male Neutrik®

109,00 kr.
Inkl. moms
NLT4MPXX

4 pole male chassis connector, metal housing, solder or ¼" flat tabs

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Antal
På fjernlager

Ref: NLT4MPXX

  • Extremely robust metal housing designed for harsh and demanding environment
  • Ideal product for touring applications and harsh environments
  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Uses precise _Quick Lock_ system
  • Mates with all currently available speakON products
  • Weatherproof built-in gasket meets IP 54 protection class (4 pole)
  • 4 pole version has UL Recognized components, CSA listed
  • 4 type range - also male cable connector and female receptacle on 4-pole version
  • IEC 61984 certified IEC 62368/-1 compliant

Product typePlugs and Connectors
TypeLoudspeaker Connectors
Poles4
Gendermale
Contactscopper
Connection typeFlat tabs / solder contacts
Housingdie-cast zinc
Width38 mm
Height38 mm
Depth37 mm
Weight0,05 kg
NEUTRIK
NLT4MPXX
