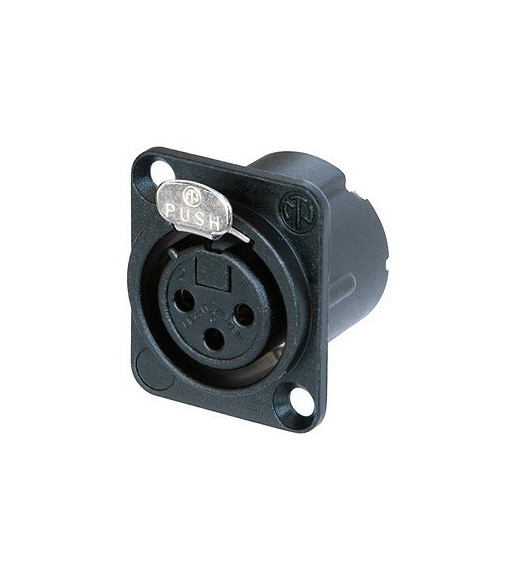

Neutrik XLR plug 3-pole female Neutrik® - with gold-plated contacts

79,00 kr.
Inkl. moms
NC3 FD-LX-B

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Antal
På fjernlager

Ref: NC3FDLXB

  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions

Product typePlugs and Connectors
TypeXLR Connectors
Poles3
Genderfemale
ContactsBronze
Connection typesolder contacts
HousingZinc die-cast
Width26 mm
Height31 mm
Depth32.66 mm
Weight0,03119 kg
NEUTRIK
NC3FDLXB
