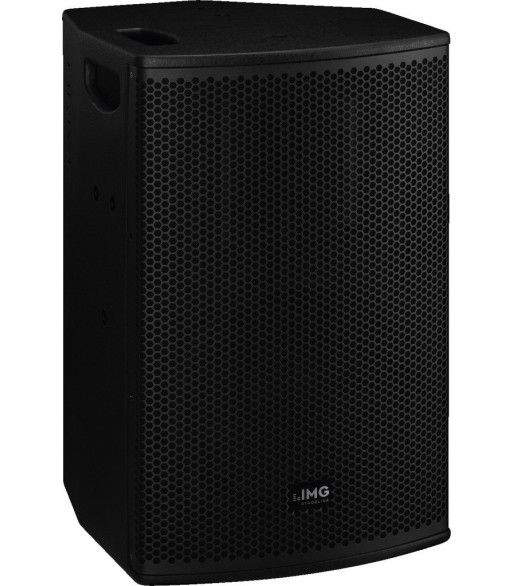

IMG STAGELINE PA-højttaler 400Wmax - DRIVE-10P

2.909,00 kr.
Inkl. moms
With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional PA speaker system, 400 W
  • Compact 10/2 fulll range system with cabinet made of birch plywood
  • 25 cm (10") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Protective circuit for the tweeter
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern
  • M8 threaded inserts for suspended installation
  • 2 x SPEAKER terminal IN/OUT
  • Stand sleeve

Antal
Sidste elementer på lager

Ref: DRIVE-10P

Active/passivepassive
Transmission technologycable
Total output power-
Power rating (RMS)-
Total power rating400 W
Power rating (RMS)200 W
Impedance8 _
Frequency range55-20,000 Hz
THD-
S/N ratio-
Input signal-
System10/2 full range
Full range speaker-
Bass speaker25 cm (10") bass speaker
Midrange speaker-
Tweeter25 mm (1") horn tweeter
Number of speakers2
Speaker size25 cm (10")
SPL98 dB/W/m
Max. rated SPL123 dB
Beam angleH: 90°/V: 60°, horn can be turned
Radiation angle, horizontal90°
Radiation angle, vertical60°
Features-
Housing materialbirch plywood
Colourblack
Mounting deviceM8 threaded inserts, stand sleeve
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply-
Dimensions320 x 530 x 350 mm
Width320 mm
Height530 mm
Depth350 mm
Weight11.25 kg

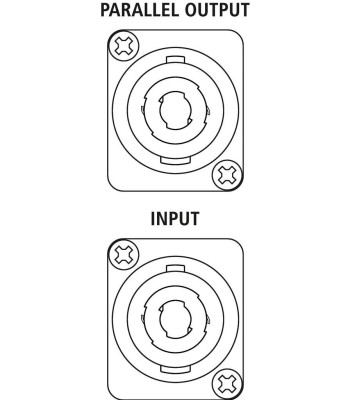

Inputs1 x SPEAKER jack
Outputs1 x SPEAKER jack par. out
Replacement voice coil-
Other features-
Accessories-
Packing dimensions (W x H x L)0.46 x 0.65 x 0.43 m
Gross weight15.1 kg
Net weight11.25 kg
IMG STAGELINE
DRIVE-10P
1 Enhed
